Optimized airflow
Strong cooling effect and low noise via Zalman’s Cooling Solution
5 System Fans Pre-installed
Simple frontal door type design
Metal brush style, a simple design

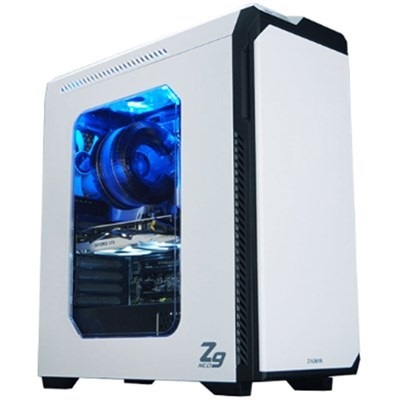

ZALMAN Z9 NEO (WHITE) Features
Soundproof Pad
A soundproof pad is applied to the inner part of the frontal door, which reduced noises produced by the PC
USB 3.0 Support & Convenient Interface
Two USB 3.0 ports, two USB 2.0 ports audio port/power & reset button are all located in the upper part of the product for users' convenience
Product Specification
Model
Z9 NEO WHITE
Case Form Factor
ATX Mid-Tower
Dimensions
205(W) x 490(H) x 482(D)mm
Motherboard Support
Standard ATX, Micro-ATX, Mini-ITX
Maximum VGA Length
400mm
Maximum CPU Cooler Height
160mm
Maximum PSU Length
200mm
PCI Expansion Slots
7
Drive Bays
5.25″ (External bay x 2)3.5″ (Internal bay x 2 ) [ Option External bay x 2]2.5″ (Internal bay x 2) [Option Internal bay x 2, External bay x 2]
Fan Support
Front : 2 x 120mm , 140mm x 2Rear : 120mmTop : 2 x 120mm
Fan(s) Included
Front : 2 x 120mm Fan Molex 4pinRear : 1 x 120mm Blue LED Fan 3pinTop : 2 x 120mm Blue LED Fan Molex 4pin
I/O Ports
USB 3.0 x 2, USB 2.0 x 2 , Microphone jack, Headphone jack
